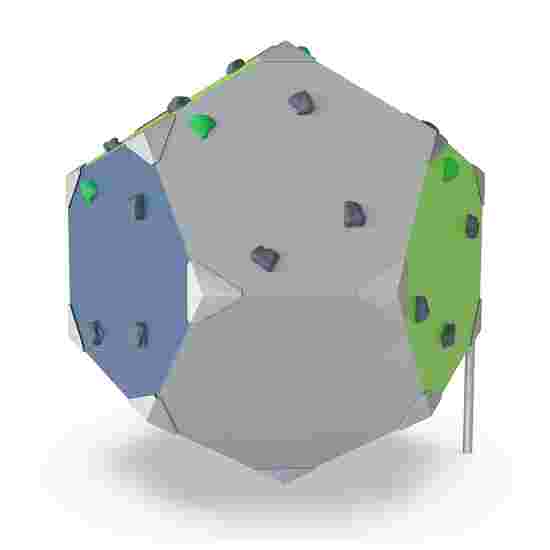

Kompan 'BLOQX 1' climbing structure

The Kompan "BLOQX" climbing structures: attractive and safe
The Kompan "BLOQX" climbing structures feature high-pressure moulded PP climbing panels, which are low-maintenance and resistant to extreme temperatures. Thanks to rounded brackets with countersunk stainless steel screws, the structures are particularly safe. Each panel features three climbing holds, allowing the climbers to explore different routes. The climbing holds are secured by a steel pin to prevent them from twisting/rotating.

For fun challenges and new skills
The Kompan "BLOQX" climbing structures can be used for a variety of challenges and games. The different climbing hold and panel positions help develop muscle strength, motor skills, coordination, spatial awareness, concentration, and social skills.

Product information

• Material, structure: galvanised steel
• Material, panels: polypropylene
• Material, brackets: aluminium with countersunk stainless steel screws
• Material, climbing holds: silicone
• Weight: 150 kg, 300 kg and 400 kg respectively
• For children aged 8–15

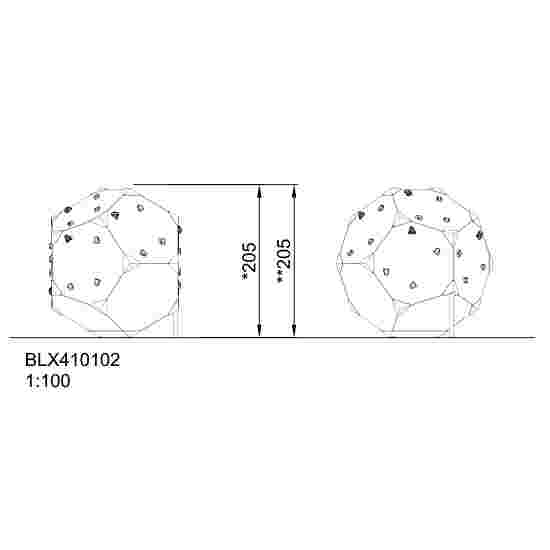

BLOQX 1

• Max. number of users: 8
• Number of people required for assembly: 2
• Assembly time: 9.1 hrs
• Required excavation: 0.46 m³
• Concrete required: 0.20 m³
• Foundation depth (standard): 90 cm

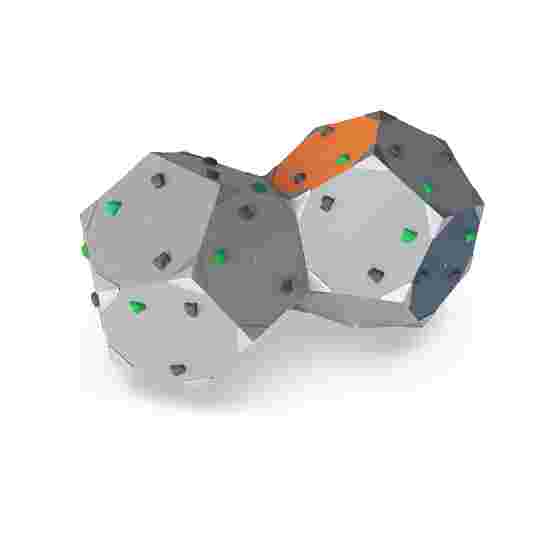

BLOQX 2

• Max. number of users: 10
• Number of people required for assembly: 2
• Assembly time: 14.1 hrs
• Required excavation: 0.83 m³
• Concrete required: 0.27 m³
• Foundation depth (standard): 90 cm

BLOQX 3

• Max. number of users: 16
• Number of people required for assembly: 2
• Assembly time: 21.1 hrs
• Required excavation: 1.05 m³
• Concrete required: 0.32 m³
• Foundation depth (standard): 90 cm
